Name: Automatic Curve Line Edge Bander KN700-3
Brand: Rilyn Machinery Co.,Ltd.
SKU: 00188
Availability: InStock
Rating: 5 (1 reviews)

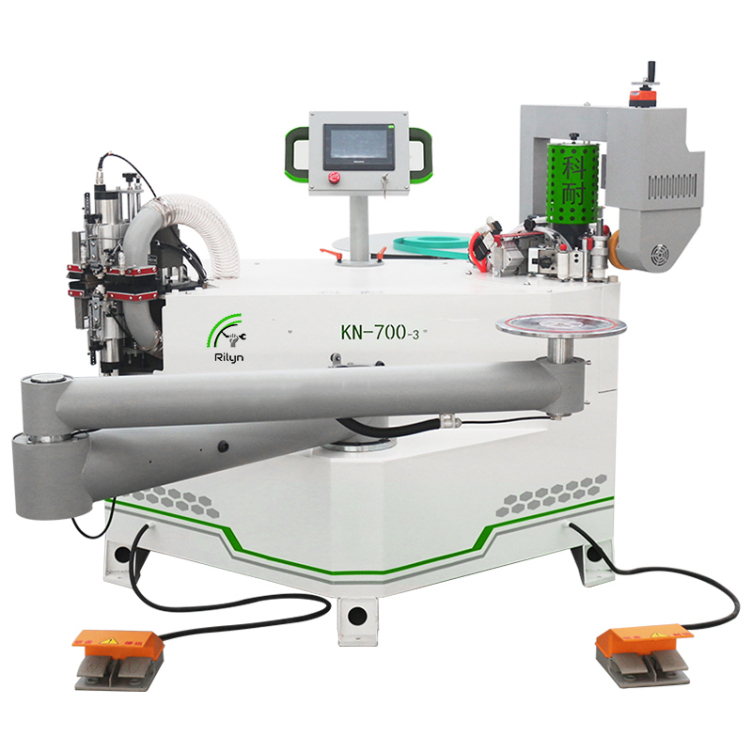

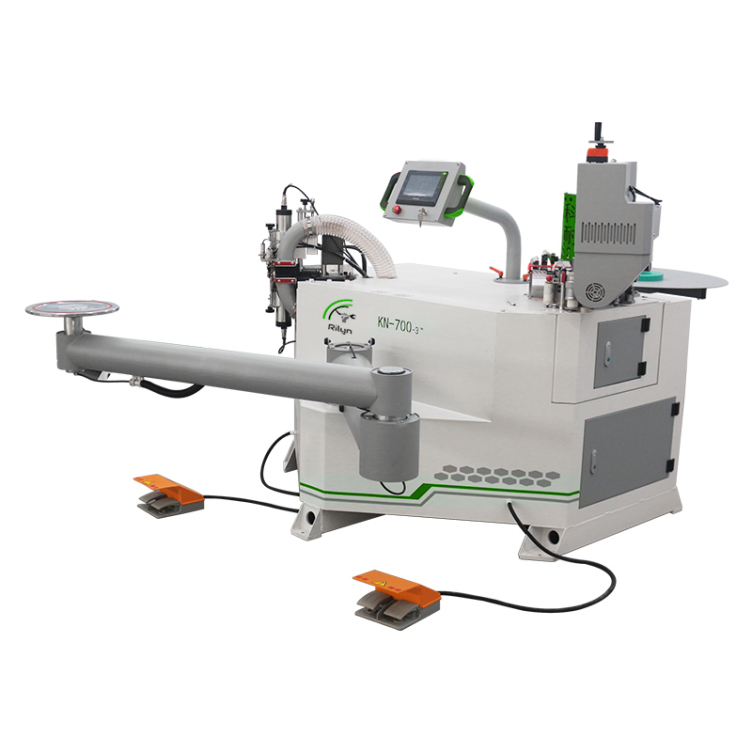

Automatic Curve Line Edge Bander KN700-3

Description Application Technical details Review

Description

Feeding Automatically
Especially for: round, oval, and round rectangles.

Automatic Spray Cleaning Agent Cleaning Device
Avoid adhesive at the bonding wheel and the pressure Cleaning devices spray cleaning liquid water- plate. based cleaning liquid is recommended.

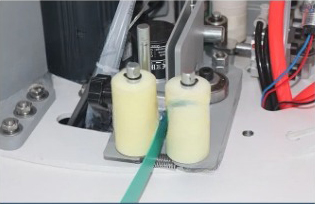

Upgraded conveyor Upgraded cutter
Upgraded conveyor keeps strip smooth and stable. Make sure the cut is perfect.

Application

The Automatic Curve Line Edge Bander KN700-3 is especially for curved panel sheet edge banding use. It is automatically fed for the curve board, especially for the round, oval, rounded rectangle.

Advantages:
1. Laser ranging, precise docking (docking error ±0.3mm), high accuracy, no need for the cut strip manual.
2. PUR and EVA, discharge glue with one click
3. Servo motor, which has fast action response and low noise. The machine has good stability.
4. Feeding speed is 0-30m/min, high work efficiency.
5. The machine has 4 cleaning devices, which automatically spray cleaning liquid. Adjustable spray time and intermittent time.
6. The capacity of the glue pot is increased to 2600ml, and there is no need to add glue frequently. The heat preservation function of the glue pot reduces the waiting time for heating by one click.
7. The touch screen can store 20 kinds of sheet data, which is convenient to use sheet data and greatly improves work efficiency.
8. Adopts 2L pressure-retaining air storage tank, when the external air pressure is unstable, it can ensure the normal operation of all pneumatic components of the whole machine.
9. 1 Heating devices make the bonding between strips and the board more firm.

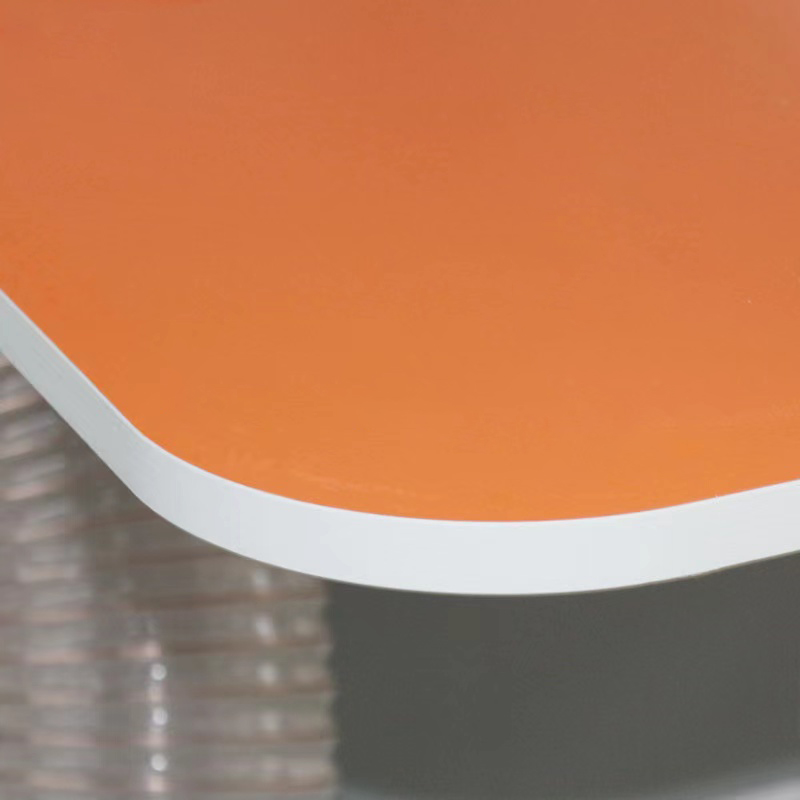

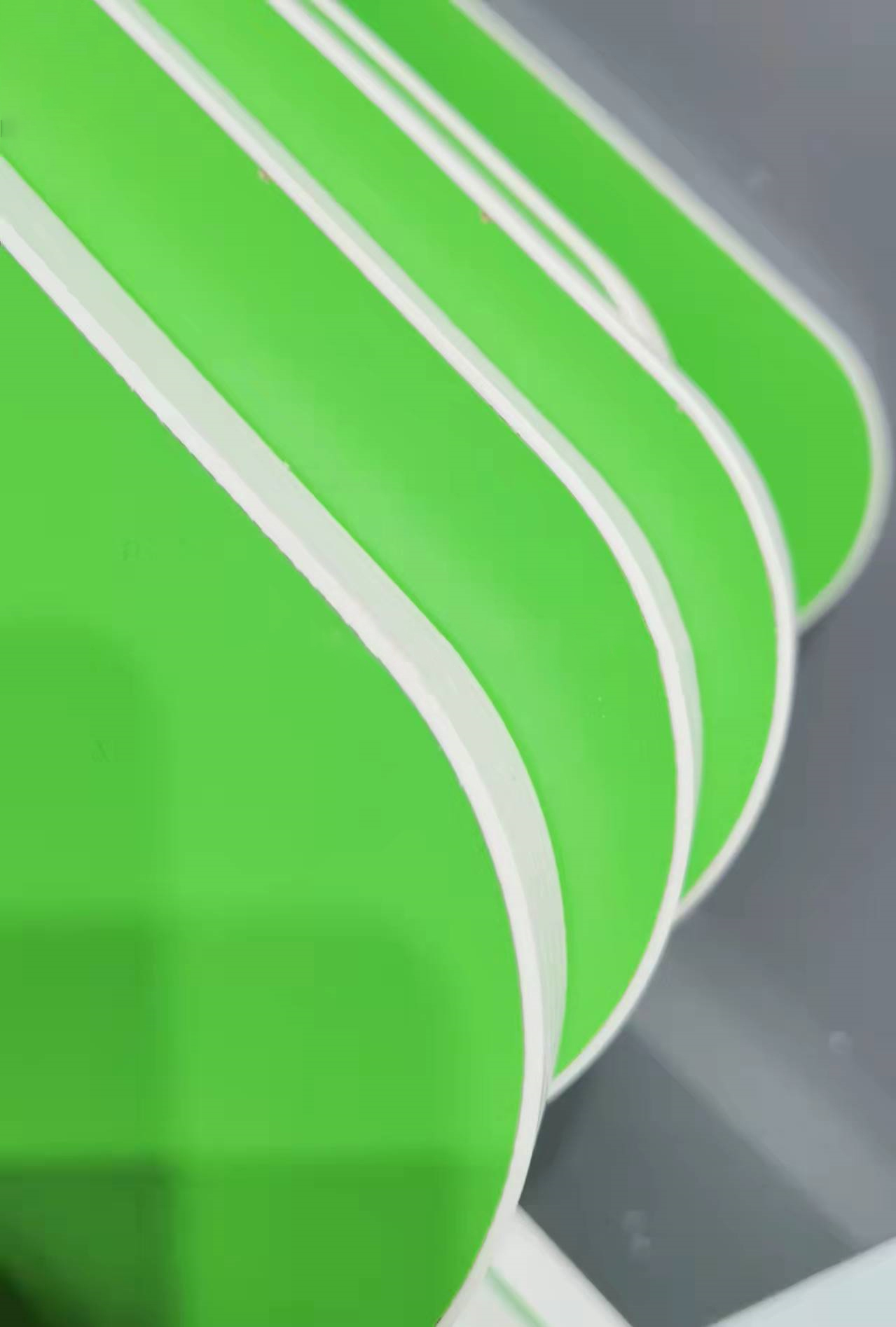

The Samples:

Technical details

Automatic Curve Line Edge Bander KN700-3
Voltage	380V/50HZ/3phase
Total power	6.5KW
Edge banding speed	0-30cm/s
Air pressure	0.6-0.8Mpa
Vacuuming	φ150mm
Gluepot temperature	110℃-210℃
Tank capacity	2L
Glue material	PUR/EVA
Gluepot volume	2600ml
Strip thickness	0.5-3mm
Trimming	14-70mm both sides trimming, ＜14mm single trimming
Strip width	12-70mm
Size	*187014001530mm*
